3D Digital UV Printer for Wood-Hot Sale

3D Digital UV Printer for Wood

Smart House Brand

  • €4.600,00

Hot sale digital printer for wooden projects

International Shipping

3D Digital UV Printer for Wood-Hot Sale-1

Specification of AR-LED Mini6


Model AR-UV LED Mini6
Size 160mmX297mm
Specifications 500mm×520mm×360 mm(W*L*H)
Net weight 40Kg
Gross weight 45kg
print speed 115sec( A4 photo)
print height  1-65mm(adjustable, OEM order)
Printhead cleaning method automatic
print resolution 5760dpi*1440dpi
media id card .leather . wood .bamboo .glass  .golf etc
ink Environmental protection UV light curing ink
Voltage AC100~120V/AC220~240Vself ?adaption, 50/60Hz±1Hz
power working mode 60W  ready mode   no more  than 20W
driver Win7, Win10
Operating  Environment  Temperature:10-35degree,Humidity:20-80%
Curing way LED lamp curing,25000-30000 hours  Super long use time


3D Digital UV Printer for Wood-Hot Sale-01



1. What materials can Haiwn UV printer print on?

Wood printers are multi-functional printers: as they can print on any materials such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile, and fabrics, etc...


2. Can lLED UV printer print embossing effect?

Yes, it can print embossing effect, for further information or sample pics, please contact our representative salesman.


3. Must it be sprayed a pre-coating?

UV printer can print white inks directly and no need for pre-coating.


4. How can we start to use the printer?

We will send the manual and teaching video with the package of the printer.

Before using the machine, please read the manual and watch the teaching video and operate strictly as instructions.

We will also offer excellent service by providing free technical support online.


5.What about the warranty?

Our factory provides one year warranty: any parts (except print head, ink pump, and ink cartridges) questions

on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.


6. what’s the printing cost?

Usually,1.25ml ink can support printing an A3 full-size image.

Printing cost is very low.


7. How can I adjust the print height?

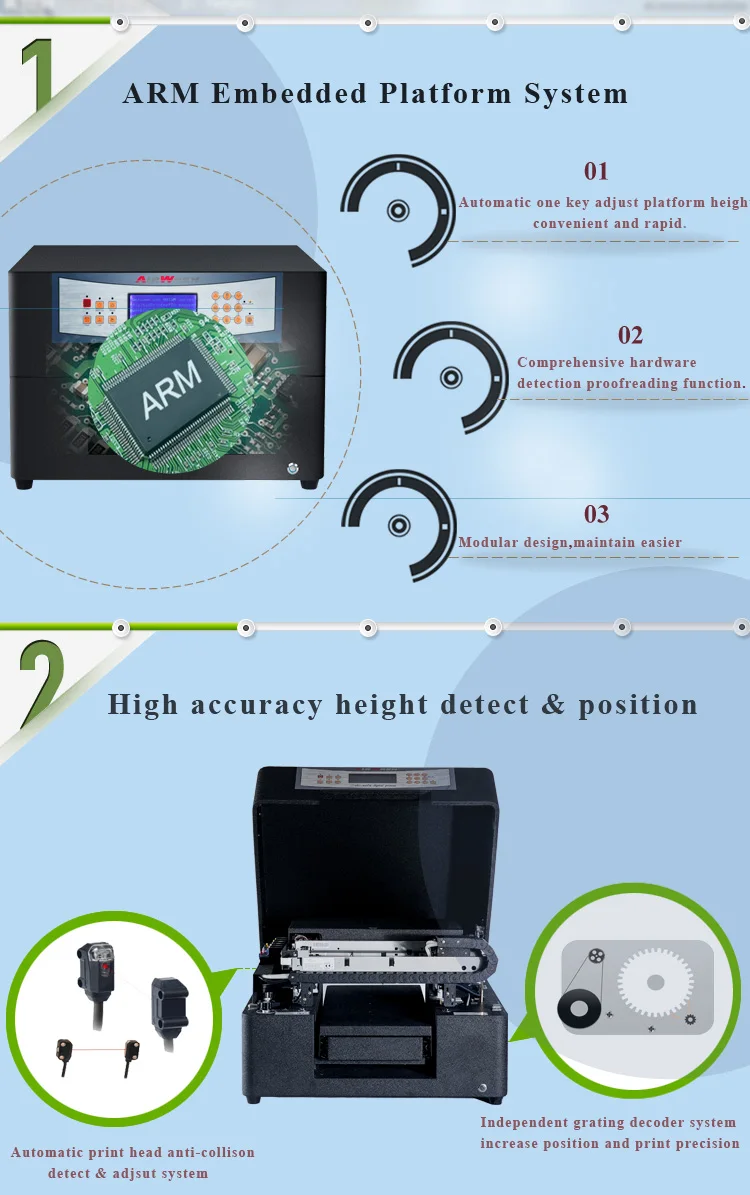

UV printer installs infrared sensor so the printer can detect the height of printing objects automatically.


8. Where can I buy the spare parts and inks?

Our factory also provides spare parts and inks, you can buy from our factory directly or other suppliers in your local market.


9.  What about the maintenance of the printer?

About maintenance, we suggest power on the printer once a day.

If you don’t use the printer for more than 3 days, please clean the print head with cleaning liquid and put in the protective cartridges on the printer (protective cartridges are specially used for protecting the print head)


3D Digital UV Printer for Wood-Hot Sale-02

Supports Network Printing: Wired
Type: Other
Interface Type: USB
Max Paper Size: A4
Style: Color
Paper Feed Mode: Manual
Print Speed: 8ppm
Double-sided Printing: No
Voltage: 100-240V
Application: For Commercial
Use: InkJet Printer
Black Print Speed: 115sec(A4 photo)

3D Digital UV Printer for Wood-Hot Sale-03

Max. Resolution: 5760*1440dpi
Launch Date: 2015
Colour Print Speed: 115sec(A4 photo)
Model Number: AR-LED Mini6
usage: UV printer
ink: UV ink

3D Digital UV Printer for Wood-Hot Sale-04

certification: CE
software: rip software
gross weight: 45kg
print size: 160mmX297mm
color mode: CMYKLMLC/CMYK+2W/CMYK+2V
print resolution: 5760dpiX1440dpi
media: phone case,ceramic,glass,wood,etc...
warranty: one year

3D Digital UV Printer for Wood-Hot Sale-05
3D Digital UV Printer for Wood-Hot Sale-06

Please contact us here, in case you need inks for your printers or other production's materials
